Sofa Bed Mechanism Types: What Spring Action, Click-Clack and Fold-Out Actually Do

A spring action sofa bed, sold in the UK as a metal action sofa bed, uses a sprung steel frame that folds in two or three sections inside the sofa base and lifts out on a scissor linkage carrying its own separate mattress. It is one of five mechanism types on the UK market, alongside click-clack, fold-out, pull-out and futon. Spring action gives the most bed-like sleeping surface of the five, because the mattress never doubles as the seat cushion.

Key Takeaways

• Spring action and metal action are the same mechanism under two names, common on UK listings and used interchangeably.

• The mattress is separate from the seat on spring action, fold-out and pull-out beds, which is why they sleep better than click-clack and futon designs.

• A click-clack folds the backrest flat, so you sleep on the seat cushions themselves. Quick to open, firmer and shallower to sleep on.

• Mechanism choice sets the swing space you need, typically 90 cm to 120 cm of clear floor in front of the sofa.

• The linkage joints and the sprung slats are what wear first, so check the warranty covers the mechanism separately from the frame.

What a Spring Action Sofa Bed Is

A spring action sofa bed uses a sprung steel folding frame stored inside the sofa base. When you convert it, the frame lifts out on a scissor linkage and unfolds in two or three sections, deploying a separate mattress that has never been used as a seat cushion. That separation is what makes spring action sleep more like a proper bed than most other sofa bed mechanisms.

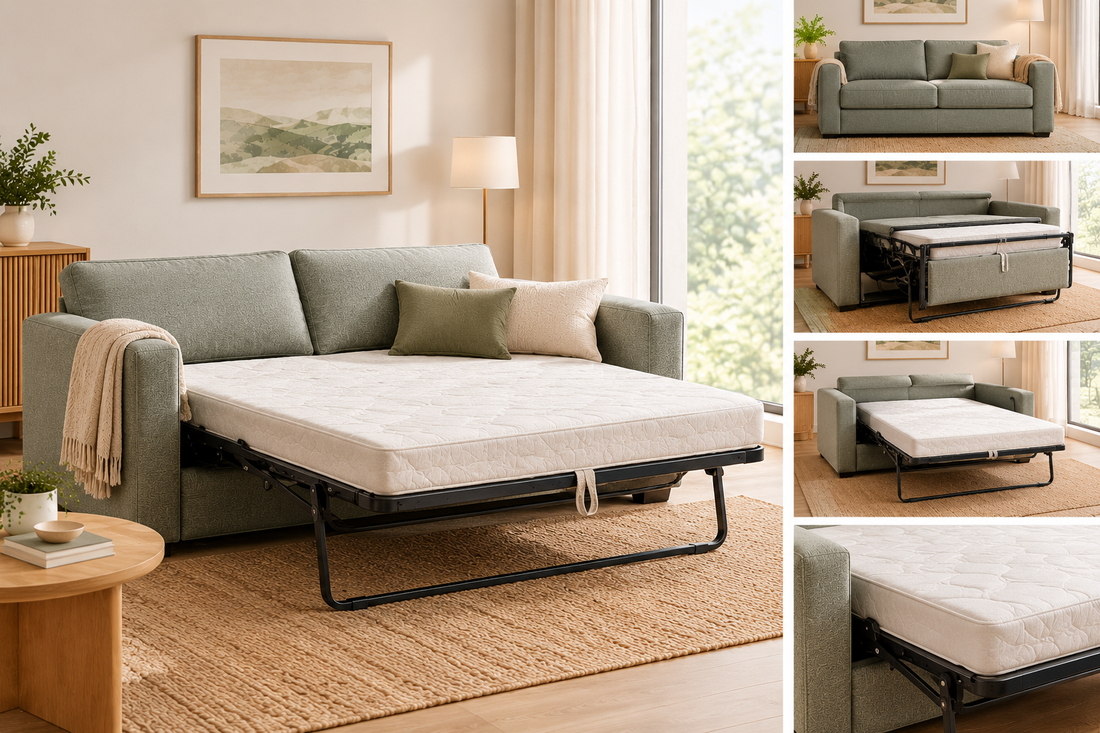

How the Sprung Steel Frame Opens

Mechanically, the process runs in four steps:

• Lifting the front seat panel exposes the mechanism handle or webbing loop

• Pulling the handle forward engages the scissor linkage, which lifts the folded frame out of the sofa base

• The frame unfolds outwards in two or three sections (a two-fold action carries a shorter mattress; a three-fold action carries a longer, deeper mattress that stores in a smaller closed volume)

• The legs at the far end drop down to support the extended frame, and the mattress lies flat across sprung slats or a mesh support

Well-engineered spring action mechanisms can be operated by one person and complete the conversion in under a minute. The action is repeatable and the frame folds back into the same closed position each time.

Why It Is Also Sold as a Metal Action Sofa Bed

UK retailers use "spring action" and "metal action" interchangeably for the same mechanism. You'll see both terms on Argos, DFS, John Lewis and specialist sofa bed retailers, sometimes on the same listing. The variant naming (two-fold metal action, three-fold metal action, three-fold roll-out) refers to how many sections the frame unfolds into rather than to a different mechanism family.

Continental trade names for related designs include DL (Delfin), Italian roll-out, and various proprietary marks. These often sit within the same broad mechanism family as spring action / metal action, though the specific engineering varies. For UK shoppers reading listings, "spring action" and "metal action" are the two words to know; the rest are usually variants or brand names for the same underlying principle.

Our Koala Sofa Bed uses a related but distinct approach: the FlipBed™ conversion is a hidden-frame design that keeps the sofa cushions in place while the bed frame with its full-size Kloudcell® mattress deploys separately, similar to spring action in keeping the mattress separate from the seat, but with a different mechanical action.

The Five Sofa Bed Mechanism Types Compared

The five mechanism types you'll encounter on the UK market, side by side. Price bands and depths are UK market ranges rather than universal figures; check individual product pages for specifications.

The takeaway: mechanisms that keep the mattress separate from the seat cushions (spring action, pull-out, and hidden-frame designs like FlipBed™) sleep meaningfully better than mechanisms that fold the seat cushions into the sleeping surface (click-clack and futon).

Spring Action, also called Metal Action

Spring action is the most common mid-market UK sofa bed mechanism. It carries its own mattress on a sprung steel folding frame, which stores compactly inside the sofa base and deploys to a proper sleeping height. Best for regular guest use and occasional nightly sleeping; the mattress depth and slat quality decide long-term comfort.

Click-Clack

Click-clack (sometimes clic-clac) is the simplest mechanism and the cheapest at retail. The backrest is hinged and clicks flat into a bed position via a ratchet or lock. The seat cushions become the sleeping surface, so seat and bed wear together. Fast to convert (often under 30 seconds), but the sleep experience is compromised by the cushion-as-mattress design and the fact that the sleep line falls across cushion seams.

Fold-Out

Fold-out is the traditional pull-out sofa bed with a mattress that folds in half or thirds. It stores flat inside the sofa base and unfolds forwards. The mattress is a proper mattress, but folding along the same crease every conversion means the crease can develop into a permanent line over time on foam models. Pocket-sprung fold-out mattresses handle this better than plain foam.

Pull-Out

Pull-out mechanisms deploy a separate mattress on a frame that pulls forward and rises to bed height. Similar to spring action but with heavier frame engineering; used on mid-market to premium sofa beds. Mattress depth is typically the deepest of the mechanism types, so pull-out sleeps closest to a standard bed.

Futon

Futon-style sofa beds use a Japanese-tradition-inspired mattress on a folding slatted base. The base folds flat or slides out to convert. Firm, low, and simple. Suits studios, guest rooms with occasional use, and buyers who prefer a firmer sleeping surface.

How to Open and Close a Spring Action Sofa Bed

Opening a spring action sofa bed takes five practical steps. Read the manufacturer's instructions before your first conversion; the sequence below is generic guidance.

1. Clear the floor in front of the sofa. You'll need 90 to 120 cm of clear space for the frame to swing out. Move the coffee table if it's in the way

2. Remove any loose cushions or throws from the seat surface. On some spring action models the seat cushions stay in place; on others they lift off. Check your model's instructions

3. Grip the handle or webbing loop and pull it forward and up. The scissor linkage engages and the folded frame lifts out of the sofa base. Keep both hands on the handle through the first section of the movement

4. Unfold the frame outwards in one continuous motion. The frame unfolds in two or three sections depending on the model; let each section settle onto the floor as it drops. The legs at the far end will engage automatically

5. Check the mattress lies flat. Straighten it if the fold has bunched it at the sections. It's ready to make up with sheets

To close, reverse the sequence: lift the far end of the frame using the handle, fold the sections inward, and lower the whole assembly back into the sofa base. The mechanism should close smoothly with the seat panel resting flat when finished. If it resists, stop, check for bedding caught in the fold, and try again rather than forcing it.

What Wears Out First on Each Mechanism

Each mechanism has a specific first failure point, which is useful to know both for buying decisions and for spotting problems before they become breakages.

• Spring action / metal action: the scissor linkage pivots wear first, particularly if the mechanism is operated repeatedly under load. Sprung slats can also lose tension over years. Look for warranties that name the mechanism and slats separately

• Click-clack: the ratchet or lock in the backrest hinge is the first to fail. When it becomes stiff or won't hold in the flat position, the mechanism is nearing end of life. The cushion foam is usually next

• Fold-out: the mattress crease along the fold line is the first symptom, then the frame hinge at the fold. The frame joints usually outlast the mattress

• Pull-out: the lift-and-pull mechanism (often gas-strut-assisted on higher-end models) is the first to fail. Frame stability generally holds up longer than the mechanism

• Futon: the folding slat frame at the hinge is the first to fail, often after a slat cracks. The mattress usually needs replacement before the frame

The pattern across all five mechanisms: the moving parts fail before the structural parts. That's why the warranty terms matter more than the headline durability language.

Choosing a Mechanism for Your Room and Your Guests

Match mechanism to how the sofa bed will actually be used, not to how it looks in a showroom photograph.

• A living room in a UK flat with occasional guests (2 to 10 nights a year): click-clack or fold-out are cost-effective. Spring action is worth it if the sofa function is used daily

• A home office or spare room with monthly or weekly guests: spring action or pull-out mechanism with a proper mattress. This is the sweet spot for most UK households

• A studio flat where the sofa bed is the primary bed: pull-out with the deepest mattress you can accommodate, or a hidden-frame design (like our Koala Sofa Bed's FlipBed™) that separates seat and sleep functions entirely

• A minimalist or low-profile aesthetic: futon suits some interiors better than a bulky spring action frame; check the sleeping surface depth honestly

• A room with limited clear floor space: click-clacks fold backwards, not forwards, so they may work where a spring action can't. Measure both the opened footprint and the direction of the fold

For any mechanism, verify what the warranty covers before you buy. A long warranty that only covers the frame doesn't help if the mechanism is what wears first.

---

A Sofa Bed Mechanism That Opens in One Flip

If an easy mechanism and a proper mattress are top of your list, our FlipBed™ design is worth a look. The Koala Sofa Bed goes from sofa to bed in one smooth flip, with no metal frame to lift and no seat cushions to take off, and it opens onto a full-size Kloudcell® mattress with a plush integrated topper. Moving parts are usually the first to wear on any sofa bed, so our warranty covers manufacturing defects on all components for the life of the product, with foam and fabric covered for 5 years.

• • See the mechanism inside the Koala Sofa Bed and check how much floor space it needs to open.

  • Explore pull out sofa beds at Koala UK to compare sizes and prices.

Every Koala Sofa Bed comes with our 120-day trial, so you can test the mechanism at home before you decide.

---

Frequently Asked Questions ( FAQs )

How does a sofa bed mechanism work?

A sofa bed mechanism works by unfolding a hinged metal or timber frame that is stored inside the sofa base. On a spring action bed the frame lifts out on a scissor linkage and unfolds in two or three sections. On a click-clack the backrest tilts flat instead. Both convert the seating footprint into a flat sleeping surface.

Is a spring action sofa bed the same as a metal action sofa bed?

Yes, spring action and metal action describe the same sofa bed mechanism. Both use a sprung steel frame that folds inside the sofa base and carries a separate mattress. UK retailers use the two terms interchangeably, and some list it as a two-fold or three-fold metal action depending on how many sections the frame has.

What is the difference between a click-clack and a futon?

A click-clack has a rigid frame with a hinged backrest that clicks flat into a bed, while a futon is a padded mattress laid on a simple slatted base that folds or slides flat. Click-clacks are firmer and quicker to convert. Futons are thinner and closer to the floor.

Why has my sofa bed mechanism become stiff to open?

A stiff sofa bed mechanism is usually caused by dry linkage joints, a bent slat, or bedding caught in the fold. Clear the fold, check the slats are seated, and apply a small amount of dry lubricant to the pivot points. If it still resists, stop and contact the retailer rather than forcing it.
